SO-W10 SERIES

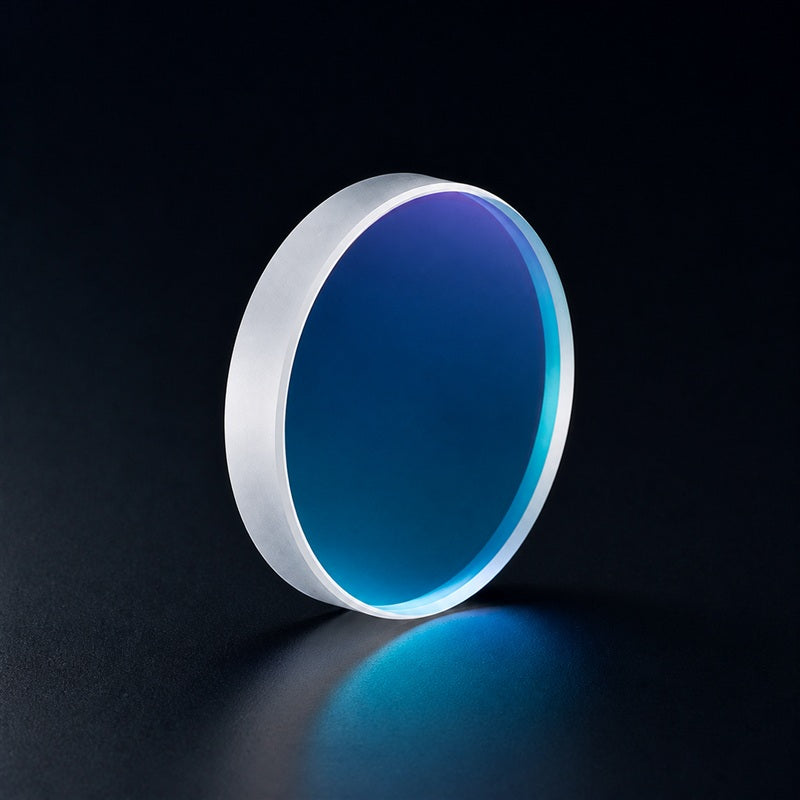

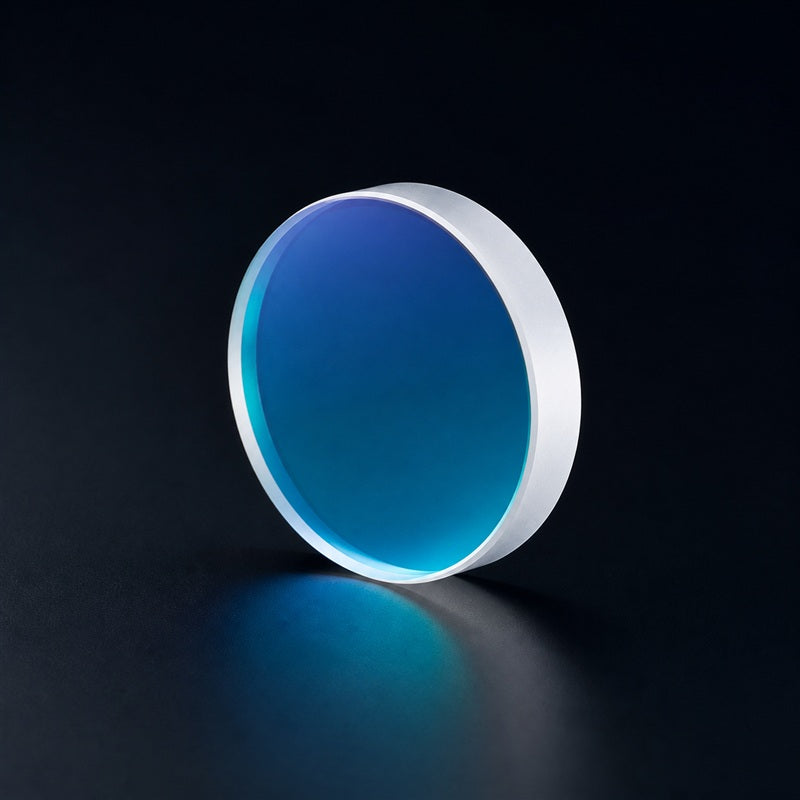

SO-W10 high-precision K9 wedge windows suppress direct back reflections by separating the front- and rear-surface reflected beams from the main optical path.
Product Overview
Select a Model
models
Engineering Guidance
Choose the window around transmitted wavefront and environment
Performance considerations
The controlled wedge is valuable in laser protection windows, detector covers, interferometric setups and imaging systems where a parallel plate could create ghost images or etalon fringes. Uncoated, VIS, NIR and SWIR AR options cover common visible and near-infrared systems.
Selection and mounting
Specify wedge orientation in the assembly and provide a safe path for the rejected reflection. For UV transmission or greater thermal stability, select the fused silica SO-W02 family.
Need a different diameter, tolerance or coating?
Custom substrate materials, dimensions, angular tolerances and coating bands can be reviewed for prototype and production quantities.
