PRODUCT FAMILY

Transmission Gratings

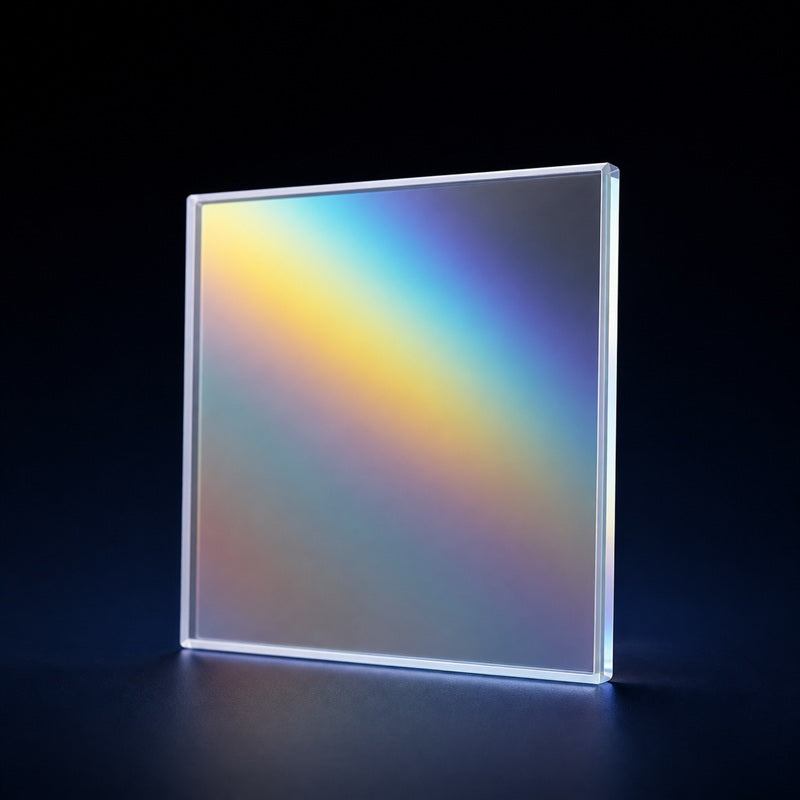

Transmission diffraction gratings separate wavelengths as light passes through the grating substrate.

They support compact spectrometers, wavelength analysis and teaching systems where groove density, diffraction efficiency and operating order determine resolution.

TRANSMISSION GRATINGS · SELECTION OVERVIEW
Related families

SELECTION PRIORITIES

Choose transmission gratings around the optical requirement

1 product families are available. Use the engineering filters below to narrow the catalog before comparing exact models.

01

Operating geometry

Select reflection or transmission format from the instrument path, detector position and available packaging space.

02

Dispersion

Choose groove density with instrument focal length and detector sampling rather than treating density alone as resolution.

03

Blaze and efficiency

Verify blaze wavelength, diffraction order, spectral range, groove direction and usable illuminated aperture.

PRODUCT FINDER

Transmission Gratings

Compare product families, then open a family to select the exact model, dimensions and coating.

1families found
1 product families

SELECTION QUESTIONS

Transmission Gratings FAQ

Technical answers to the questions that most often affect model selection.

Should I choose a reflection or transmission grating?
Use a transmission grating for compact in-line layouts and a reflection grating when the diffracted path should remain on the incident side or when a reflective coating and blaze condition are required. Mechanical envelope and wavelength range often decide the format.
How do groove density and blaze affect a grating?
Groove density controls angular dispersion, while blaze angle concentrates efficiency toward a selected wavelength and diffraction order. Higher dispersion does not automatically provide higher system resolution; slit width, focal length and detector sampling also matter.
Which grating data should be confirmed before ordering?
Confirm groove density, blaze wavelength or angle, usable wavelength range, diffraction order, substrate dimensions, clear aperture and expected efficiency. The drawing must also identify groove direction and coated face orientation.

Need a different diameter, tolerance or coating?

Send your material, wavelength, dimensions and quantity for review.

Request engineering review
