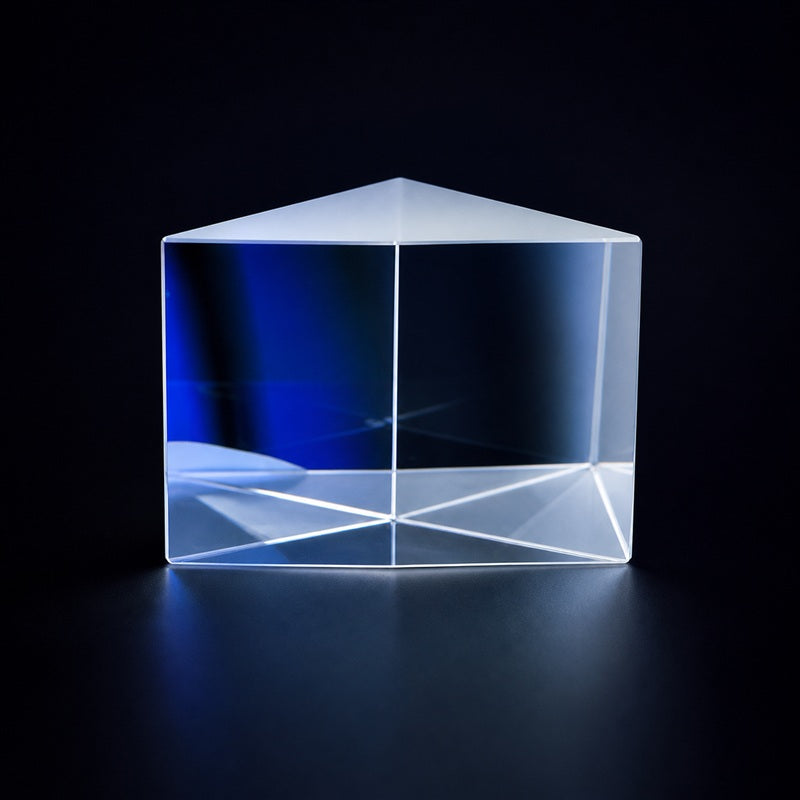

UVFS Laser Right-Angle Prism front product view on a dark background

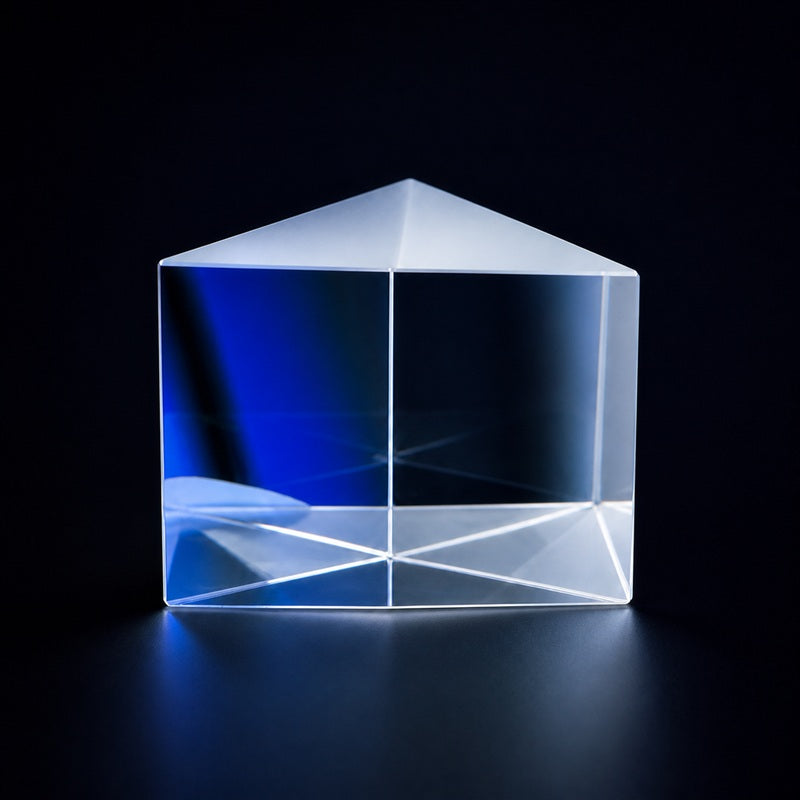

Angled view of UVFS Laser Right-Angle Prism for beam steering, image rotation and optical alignment

SO-P15 SERIES

UVFS Laser Right-Angle Prism

SO-P15 laser right-angle prisms combine UV fused silica, a 20-10 optical finish and wavelength-specific V coatings for low-loss beam folding at selected laser lines. The series is suitable for UV and visible laser routing, compact interferometers and precision alignment systems.

UV Fused Silica
$104.41
$104.41

Select a Model

Product Overview

Control beam deviation and image orientation with UVFS Laser Right-Angle Prism

Each model suffix identifies the coating wavelength. Match the laser line exactly, then select side length according to beam diameter and verify the angular tolerance against the allowable pointing error.

A V coating is narrowband; do not substitute it for a broadband coating when several operating wavelengths share the same optical path.

Select a Model

models

Engineering Guidance

Choose the prism around beam geometry and angular accuracy

Optical behavior

Each model suffix identifies the coating wavelength. Match the laser line exactly, then select side length according to beam diameter and verify the angular tolerance against the allowable pointing error.

Selection and handling

A V coating is narrowband; do not substitute it for a broadband coating when several operating wavelengths share the same optical path.

Need a different diameter, tolerance or coating?

Custom substrate materials, dimensions, angular tolerances and coating bands can be reviewed for prototype and production quantities.

Request Engineering Review
