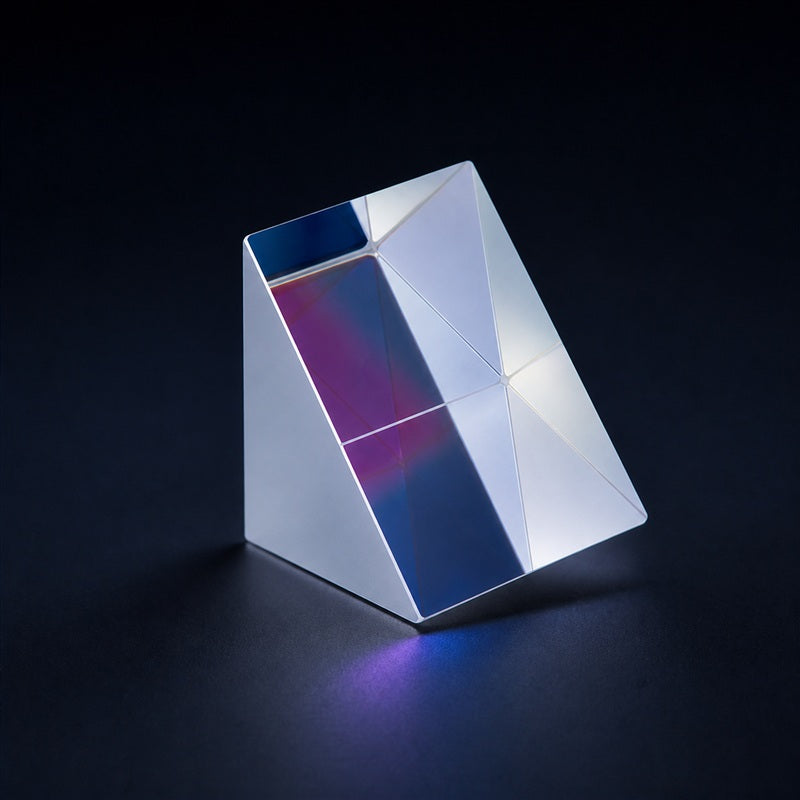

K9 Standard Right-Angle Prism front product view on a dark background

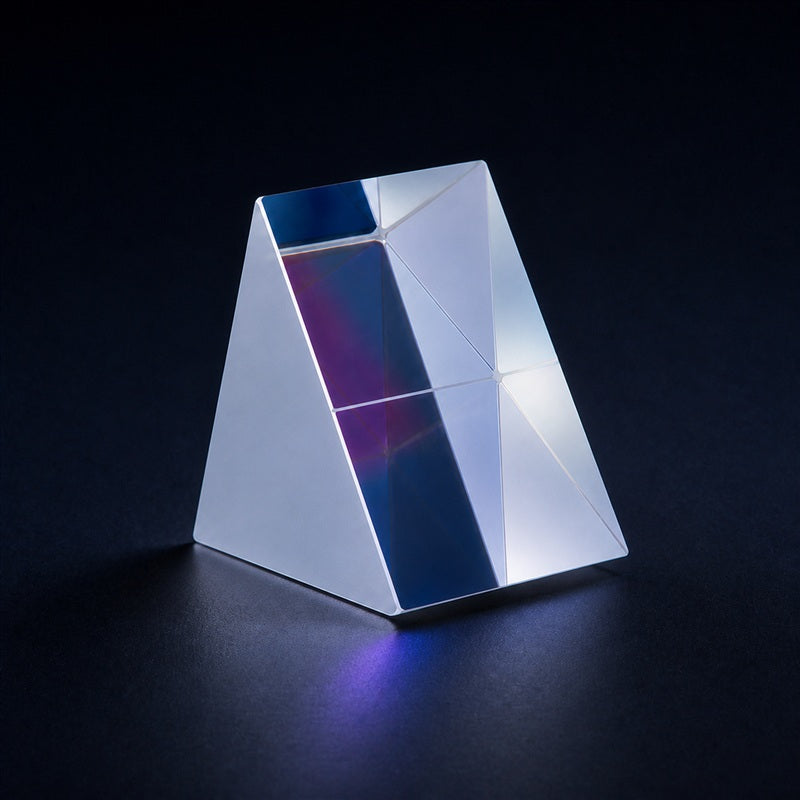

Angled view of K9 Standard Right-Angle Prism for beam steering, image rotation and optical alignment

SO-P01 SERIES

K9 Standard Right-Angle Prism

SO-P01 standard K9 right-angle prisms are general-purpose components for 90-degree beam folding, image inversion and educational optical assemblies. The broad size range makes them suitable for prototypes, alignment benches and cost-sensitive visible-light instruments.

K9 Optical Glass
$63.24
$63.24

Select a Model

Product Overview

Control beam deviation and image orientation with K9 Standard Right-Angle Prism

Model selection is based primarily on equal side length, surface quality and angular error. Check whether the hypotenuse will operate by total internal reflection or requires a reflective coating in the final environment.

Reserve clear aperture inside the physical edge and keep retaining hardware away from the optical footprint and sharp prism corners.

Select a Model

models

Engineering Guidance

Choose the prism around beam geometry and angular accuracy

Optical behavior

Model selection is based primarily on equal side length, surface quality and angular error. Check whether the hypotenuse will operate by total internal reflection or requires a reflective coating in the final environment.

Selection and handling

Reserve clear aperture inside the physical edge and keep retaining hardware away from the optical footprint and sharp prism corners.

Need a different diameter, tolerance or coating?

Custom substrate materials, dimensions, angular tolerances and coating bands can be reviewed for prototype and production quantities.

Request Engineering Review
