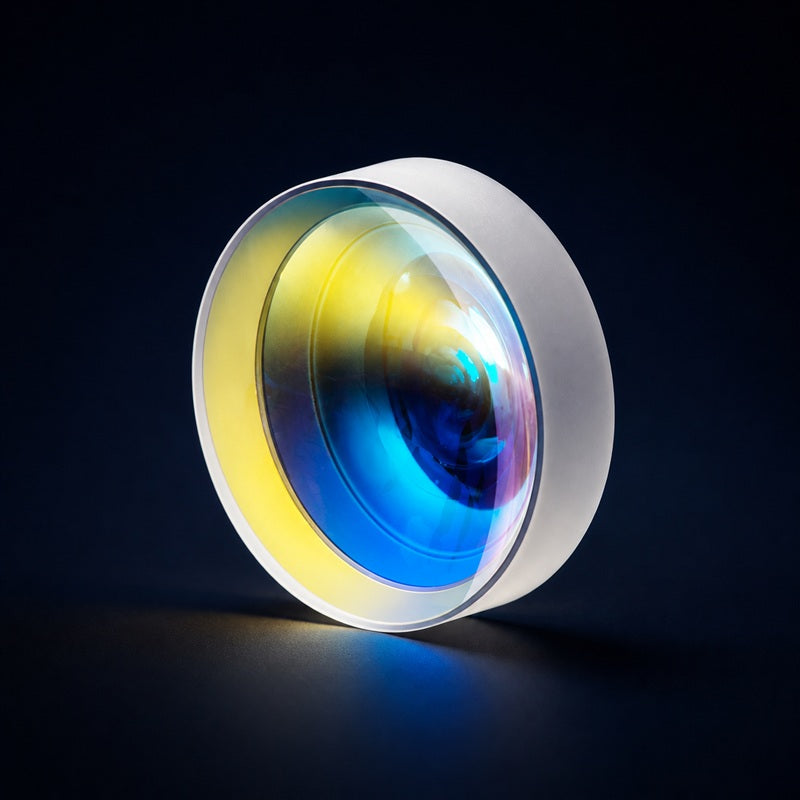

UV Fused Silica Plano-Concave Lens front product view on a dark background

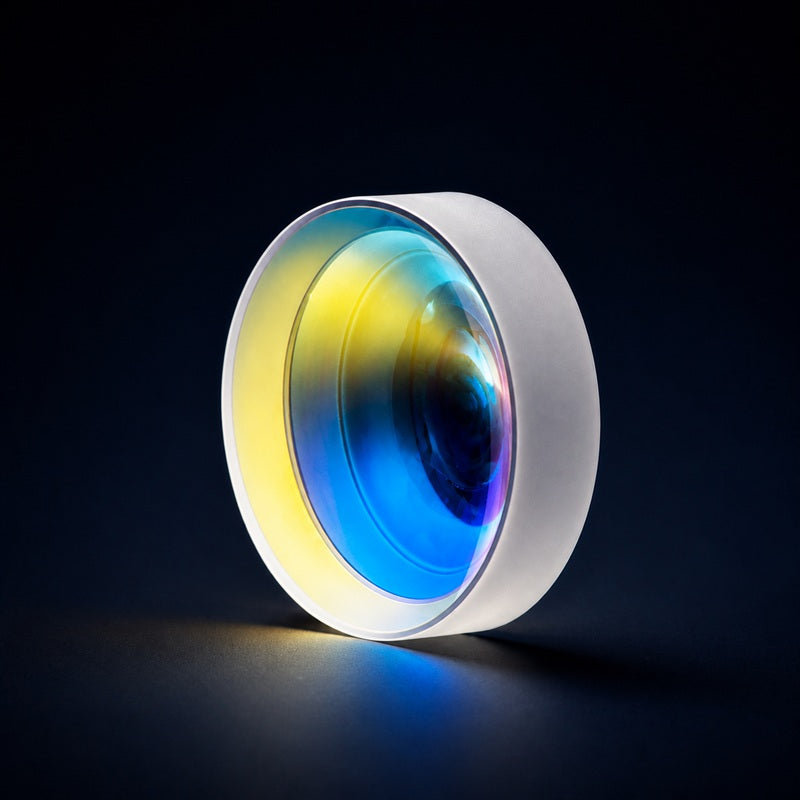

Angled view of UV Fused Silica Plano-Concave Lens for laser focusing, imaging and beam-shaping systems

SO-L29 SERIES

UV Fused Silica Plano-Concave Lens

SO-L29 plano-concave lenses combine negative optical power with the UV transmission and thermal stability of fused silica. They are used to expand collimated beams, increase the effective focal length of compound systems and introduce controlled divergence in UV-visible laser and spectroscopy paths.

UV Fused Silica
$69.12
$69.12

Select a Model

Product Overview

Configure UV Fused Silica Plano-Concave Lens around focal geometry and coating

Focal length and back focal length are negative by convention. For a collimated input, place the concave surface toward the incident beam to reduce spherical aberration, and verify the edge thickness when selecting a retaining ring or compact barrel.

Select UV fused silica when ultraviolet performance, low fluorescence or thermal stability is required beyond standard K9 glass.

Select a Model

models

Engineering Guidance

Choose the configuration around focal length and working wavelength

Optical behavior

Focal length and back focal length are negative by convention. For a collimated input, place the concave surface toward the incident beam to reduce spherical aberration, and verify the edge thickness when selecting a retaining ring or compact barrel.

Selection and integration

Select UV fused silica when ultraviolet performance, low fluorescence or thermal stability is required beyond standard K9 glass.

Need a different diameter, tolerance or coating?

Custom substrate materials, dimensions, angular tolerances and coating bands can be reviewed for prototype and production quantities.
