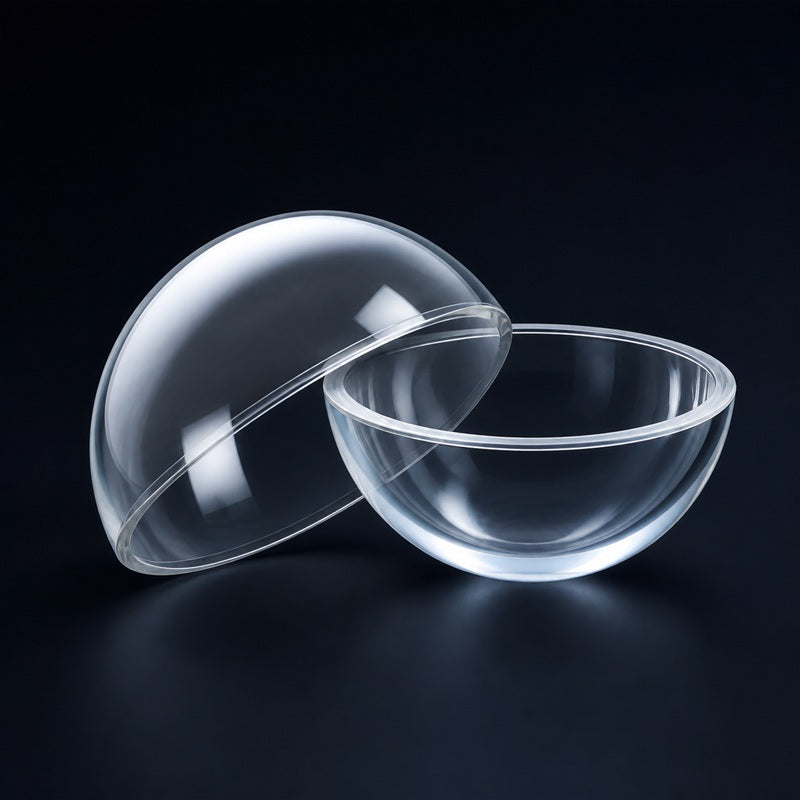

UV Fused Silica Dome Window front product view on a dark background

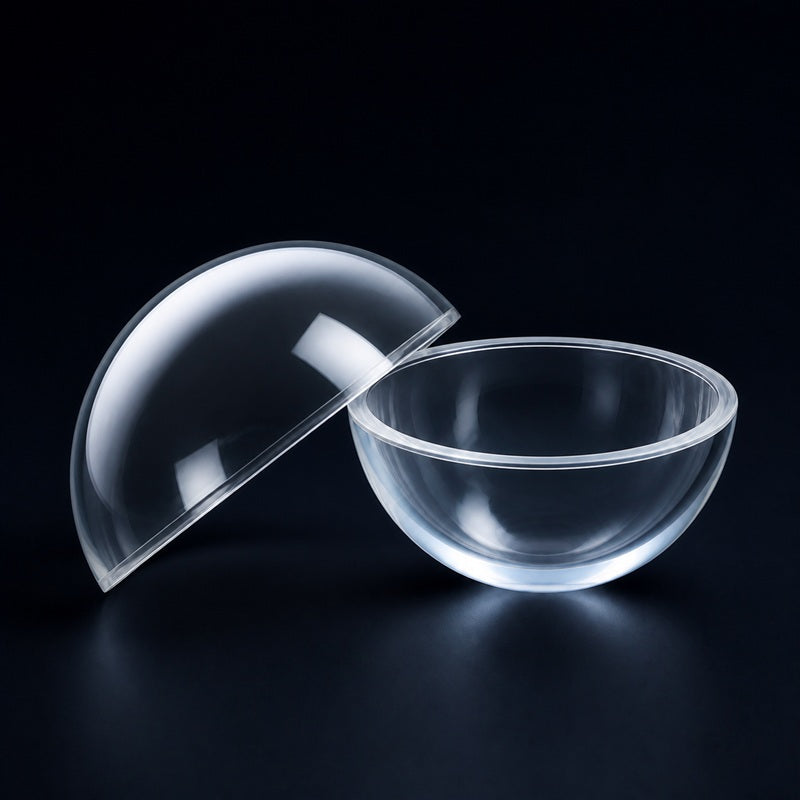

Angled view of UV Fused Silica Dome Window for sensor protection, imaging and laser enclosures

SO-W12 SERIES

UV Fused Silica Dome Window

SO-W12 UV fused silica dome windows protect wide-angle detectors, cameras and optical sensors while supporting UV-visible transmission and improved thermal stability.

UV Fused Silica
$514.71
$514.71

Select a Model

Product Overview

Specify UV Fused Silica Dome Window by aperture, surface accuracy and mounting

This material is the stronger dome choice when UV response, low fluorescence or temperature stability is important. The curved profile accommodates a broad viewing envelope, but its diameter, height and wall thickness remain part of the optical design rather than only the enclosure design.

Place the internal lens or detector with respect to the dome center and verify housing clearance. For quantitative imaging, review distortion, concentricity and transmitted wavefront requirements.

Select a Model

models

Engineering Guidance

Choose the window around transmitted wavefront and environment

Performance considerations

This material is the stronger dome choice when UV response, low fluorescence or temperature stability is important. The curved profile accommodates a broad viewing envelope, but its diameter, height and wall thickness remain part of the optical design rather than only the enclosure design.

Selection and mounting

Place the internal lens or detector with respect to the dome center and verify housing clearance. For quantitative imaging, review distortion, concentricity and transmitted wavefront requirements.

Need a different diameter, tolerance or coating?

Custom substrate materials, dimensions, angular tolerances and coating bands can be reviewed for prototype and production quantities.

Request Engineering Review
