SO-P14 SERIES

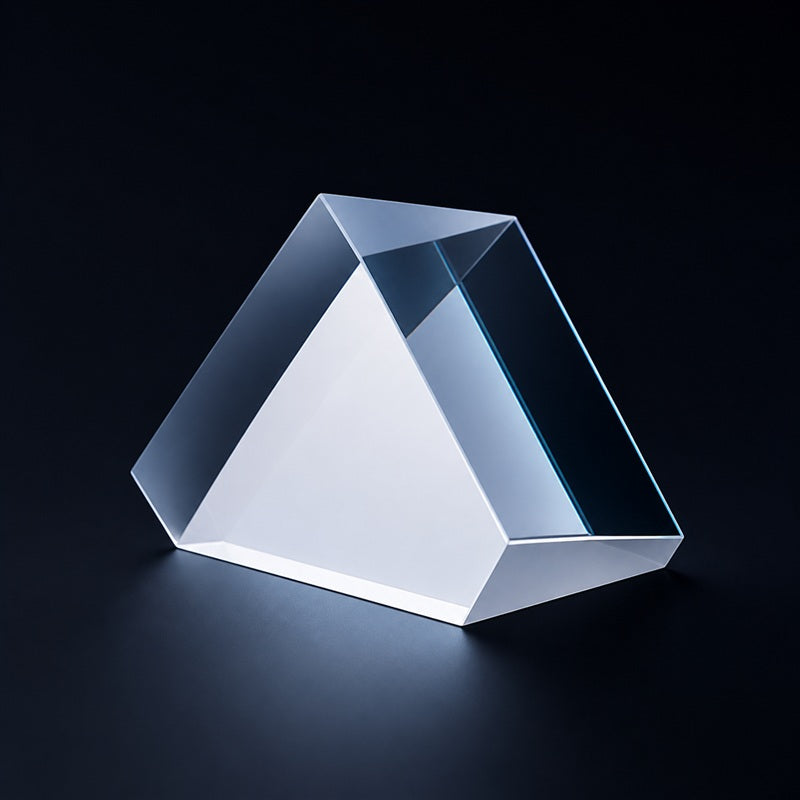

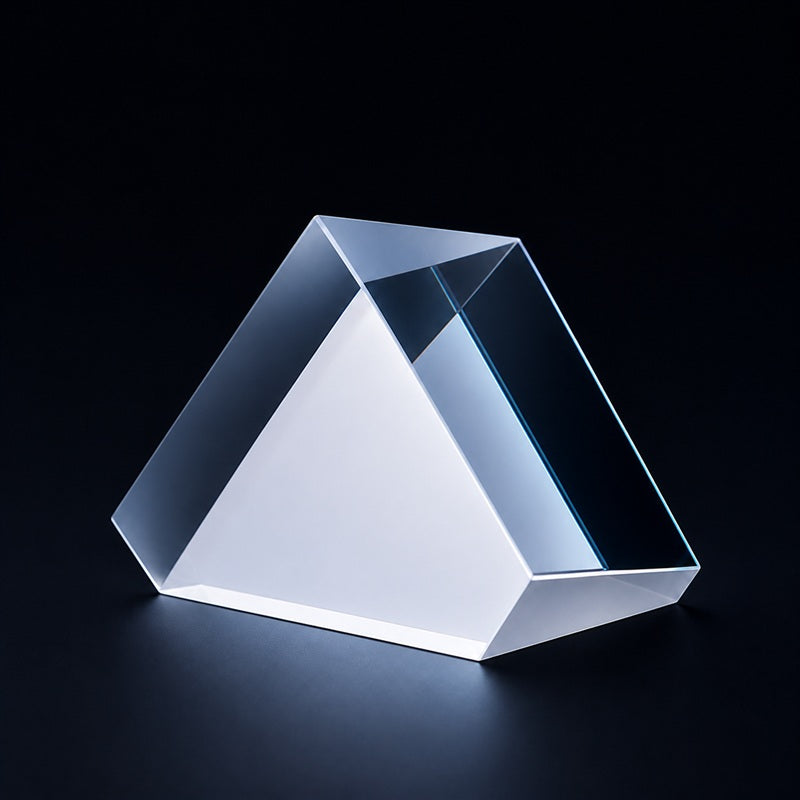

SO-P14 high-precision UV fused silica right-angle prisms are intended for beam steering, image rotation and alignment systems requiring tighter angular control and a finer optical finish than standard laboratory prisms.
Product Overview
Select a Model
models
Engineering Guidance
Choose the prism around beam geometry and angular accuracy
Optical behavior
The 20-10 surface-quality specification and arcsecond-level angular tolerance support demanding imaging and laser paths. Confirm side length, face coating and mounting reference surfaces before integrating the prism into a fixed housing.
Selection and handling
Avoid clamping directly across precision optical faces; use a kinematic or compliant mount that preserves the specified angular relationship.
Need a different diameter, tolerance or coating?
Custom substrate materials, dimensions, angular tolerances and coating bands can be reviewed for prototype and production quantities.
