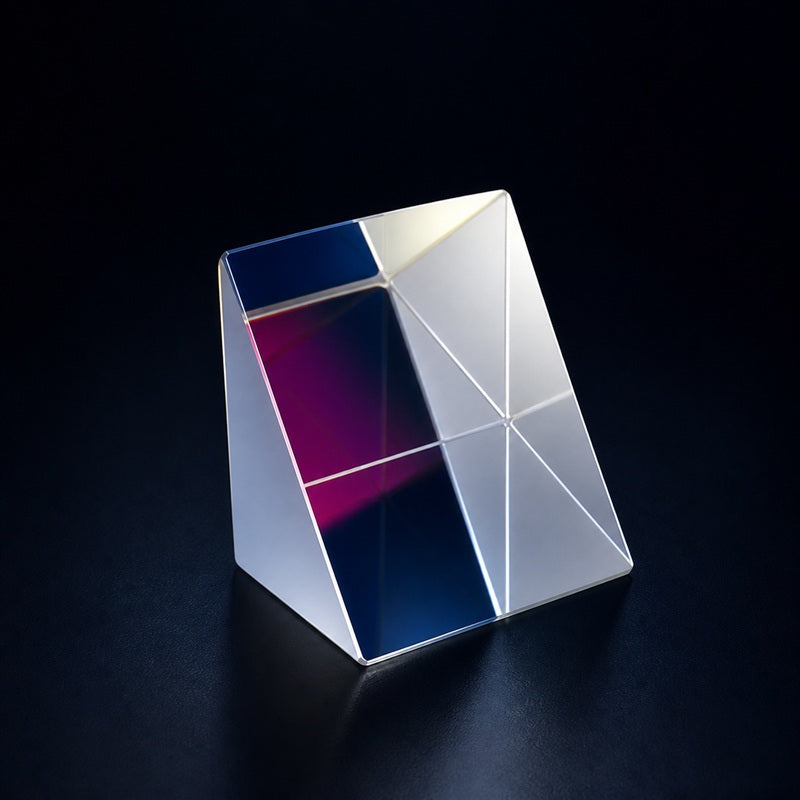

K9 High-Precision Right-Angle Prism front product view on a dark background

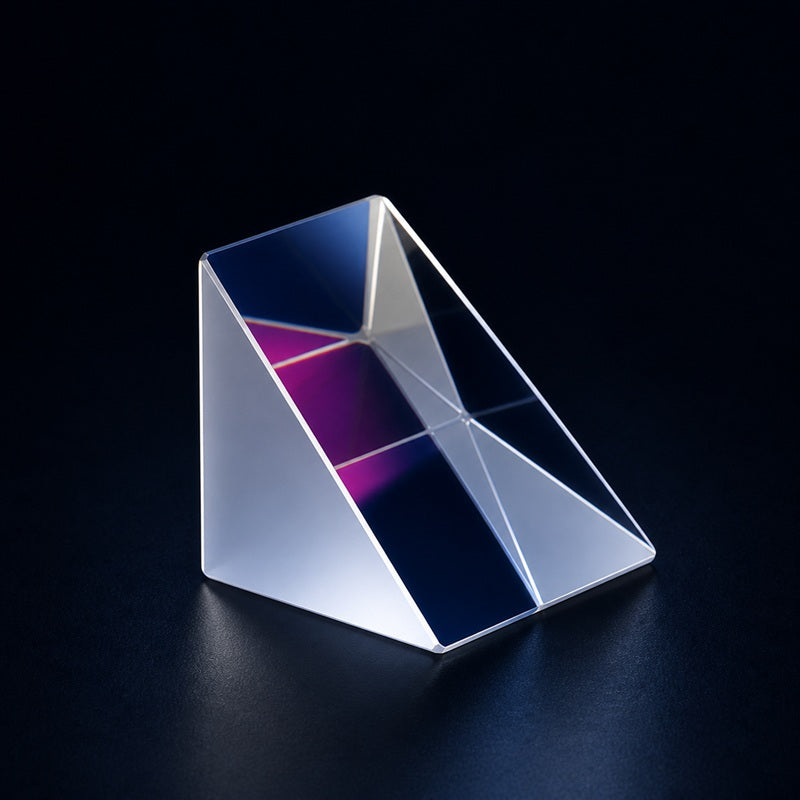

Angled view of K9 High-Precision Right-Angle Prism for beam steering, image rotation and optical alignment

SO-P10 SERIES

K9 High-Precision Right-Angle Prism

SO-P10 high-precision K9 right-angle prisms support accurate 90-degree beam folding, image rotation and compact periscope geometries. The series includes miniature and larger sizes with a finer surface finish and tighter angular accuracy than the standard SO-P01 family.

K9 Optical Glass
$75.00
$75.00

Select a Model

Product Overview

Control beam deviation and image orientation with K9 High-Precision Right-Angle Prism

Select by equal side length and beam footprint, then verify the angular tolerance and coating state for each optical face. Small prisms require particular attention to mount clearance and adhesive placement.

Use optical-contact references or precision datum surfaces during alignment; prism edge dimensions alone do not establish the optical pointing axis.

Select a Model

models

Engineering Guidance

Choose the prism around beam geometry and angular accuracy

Optical behavior

Select by equal side length and beam footprint, then verify the angular tolerance and coating state for each optical face. Small prisms require particular attention to mount clearance and adhesive placement.

Selection and handling

Use optical-contact references or precision datum surfaces during alignment; prism edge dimensions alone do not establish the optical pointing axis.

Need a different diameter, tolerance or coating?

Custom substrate materials, dimensions, angular tolerances and coating bands can be reviewed for prototype and production quantities.

Request Engineering Review
