SO-M17 SERIES

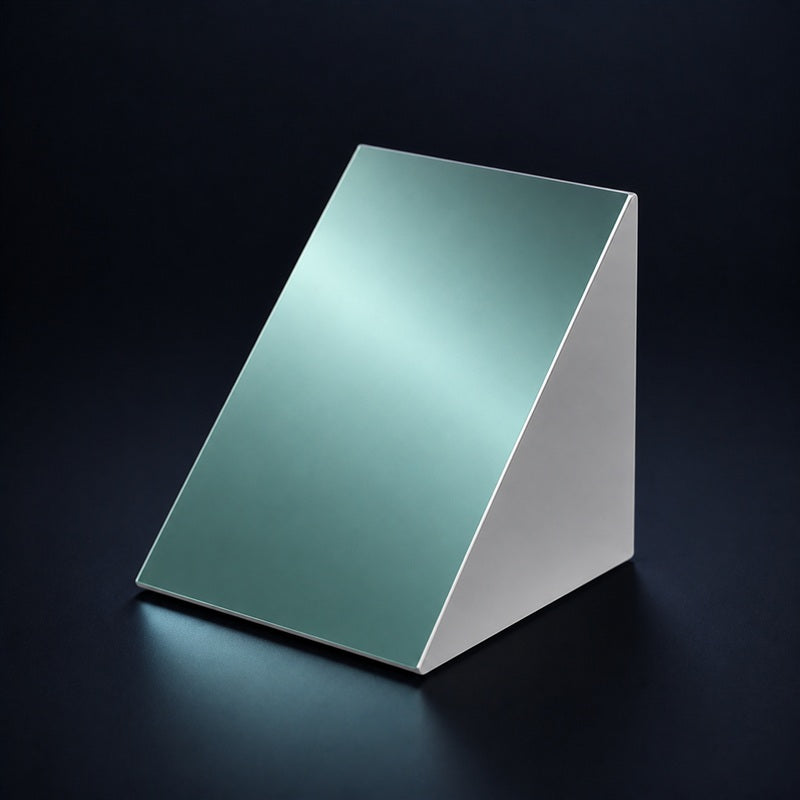

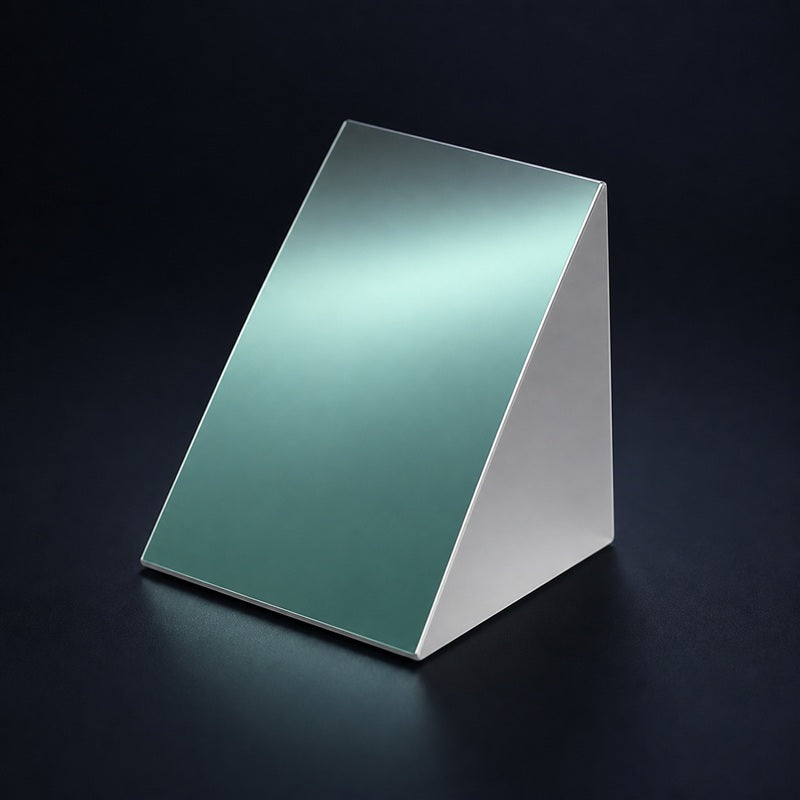

SO-M17 K9 Right-Angle Prism Mirror provides compact 90-degree beam folding using a coated right-angle prism geometry.
Product Overview
Select a Model
models
Engineering Guidance
Choose reflective geometry and coating as one optical system
Performance considerations
Coating code, wavelength and angle of incidence are optical specifications, not cosmetic options. The same substrate size can behave differently when any of those fields changes.
Selection and orientation
Choose prism size by beam footprint and preserve the coated-face orientation; angular and pyramidal errors affect pointing accuracy.
Need a different diameter, tolerance or coating?
Custom substrate materials, dimensions, angular tolerances and coating bands can be reviewed for prototype and production quantities.
Technical Resources
Related engineering articles
Selection notes and practical guidance matched to this product family.
CANAL GLASS SHOP
TECHNICAL RESOURCE
TECHNICAL RESOURCE
Selecting Plane, Concave and Off-Axis Reflective Geometry
Match mirror geometry to beam folding, focusing, collimation and unobscured optical layouts.
CANAL GLASS SHOP
TECHNICAL RESOURCE
TECHNICAL RESOURCE
Aluminum, Silver, Gold and Dielectric Mirror Coatings
Compare spectral coverage, reflectivity, durability and environmental limits of common mirror coatings.
CANAL GLASS SHOP
TECHNICAL RESOURCE
TECHNICAL RESOURCE
How Angle of Incidence Affects Mirror Performance
Evaluate coating band, polarization response and mechanical orientation at the system incidence angle.
