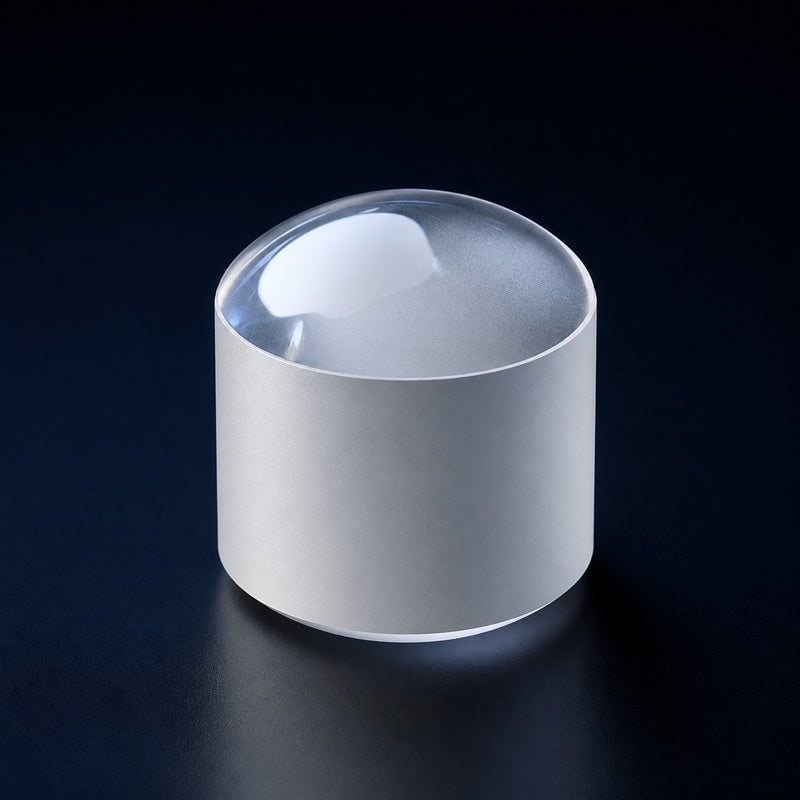

UV Fused Silica Drum Lens front product view on a dark background

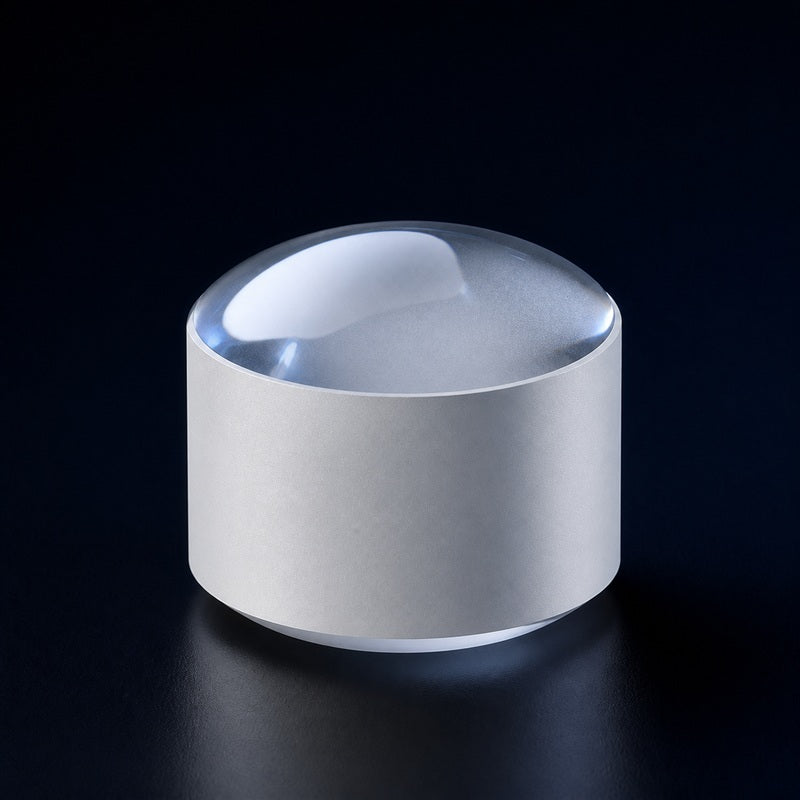

Angled view of UV Fused Silica Drum Lens for laser focusing, imaging and beam-shaping systems

SO-L32 SERIES

UV Fused Silica Drum Lens

SO-L32 UV fused silica drum lenses combine spherical optical surfaces with a cylindrical sidewall that is easier to locate and retain than a full ball lens. They are useful for compact fiber coupling, miniature collimators and UV-visible optical probes requiring a short focal length.

UV Fused Silica
$82.35
$82.35

Select a Model

Product Overview

Configure UV Fused Silica Drum Lens around focal geometry and coating

The model geometry is defined by diameter and center thickness, while focal length and back focal length establish the optical spacing. The cylindrical barrel improves mechanical registration but still requires accurate centering relative to the optical axis.

Choose a drum lens when ball-lens-like power is needed with a more practical cylindrical mounting surface.

Select a Model

models

Engineering Guidance

Choose the configuration around focal length and working wavelength

Optical behavior

The model geometry is defined by diameter and center thickness, while focal length and back focal length establish the optical spacing. The cylindrical barrel improves mechanical registration but still requires accurate centering relative to the optical axis.

Selection and integration

Choose a drum lens when ball-lens-like power is needed with a more practical cylindrical mounting surface.

Need a different diameter, tolerance or coating?

Custom substrate materials, dimensions, angular tolerances and coating bands can be reviewed for prototype and production quantities.

Request Engineering Review
