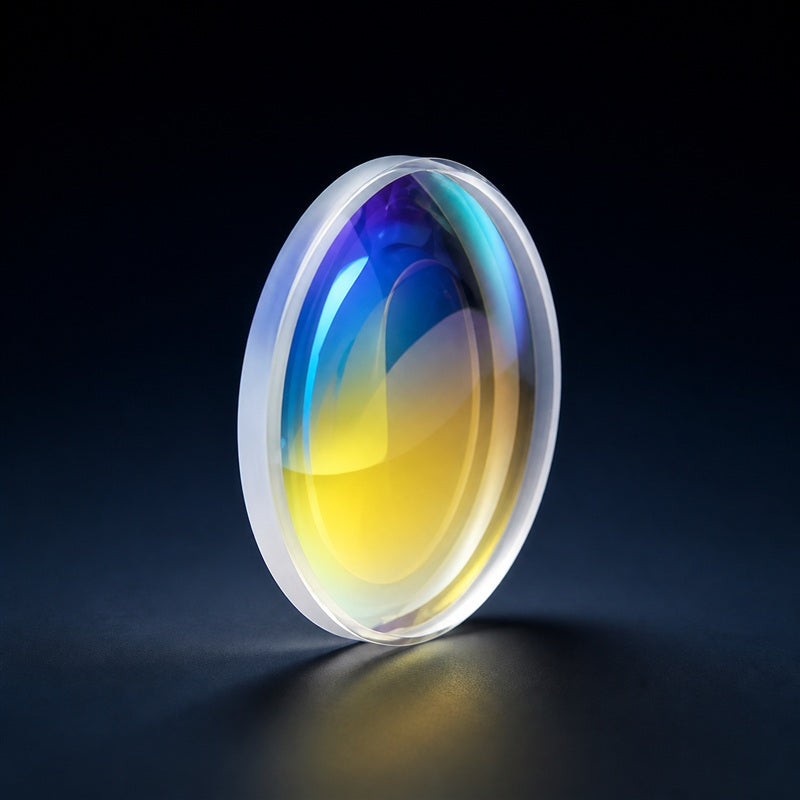

K9 Plano-Convex Lens, 650-1100 nm AR Coating front product view on a dark background

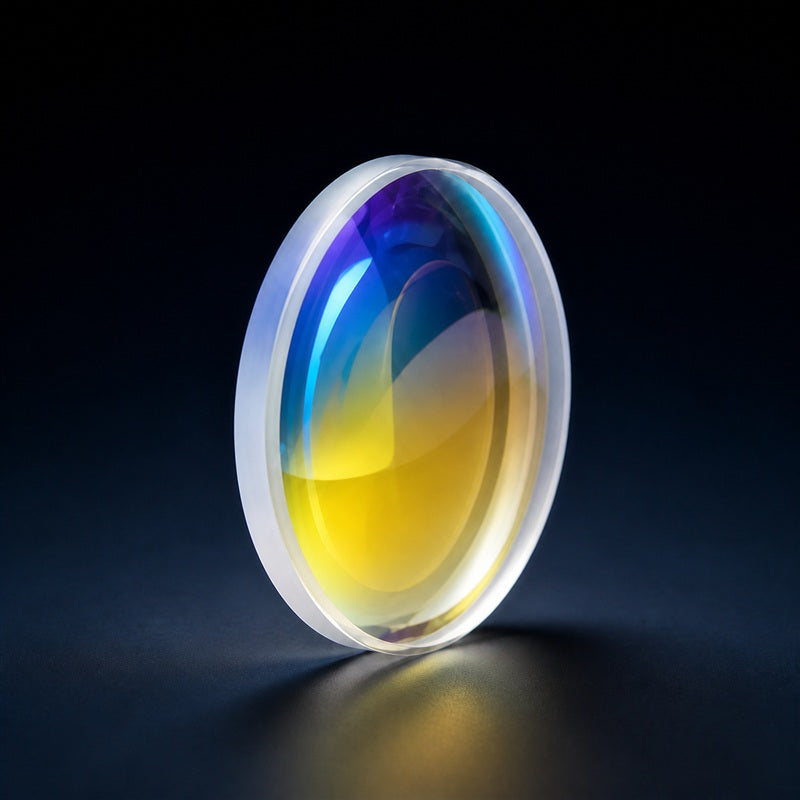

Angled view of K9 Plano-Convex Lens, 650-1100 nm AR Coating for laser focusing, imaging and beam-shaping systems

SO-L01 SERIES

K9 Plano-Convex Lens, 650-1100 nm AR Coating

SO-L01 B-band plano-convex lenses are coated for reduced reflection from 650 to 1100 nm, covering common red and near-infrared diode-laser wavelengths. The K9 substrate provides consistent optical quality for beam focusing, fiber-coupling benches, NIR illumination and compact imaging assemblies that do not require deep-IR materials.

K9 Optical Glass 650-1100 nm AR
$42.65
$42.65

Select a Model

Product Overview

Configure K9 Plano-Convex Lens, 650-1100 nm AR Coating around focal geometry and coating

Choose focal length according to the required convergence angle and working distance, then verify the back focal length against the mechanical layout. The B coating is specified as average reflectance below 0.5% across the stated wavelength range.

This version is best matched to red and near-infrared sources from 650 to 1100 nm, including many 780, 808, 850, 940 and 1064 nm systems.

Select a Model

models

Engineering Guidance

Choose the configuration around focal length and working wavelength

Optical behavior

Choose focal length according to the required convergence angle and working distance, then verify the back focal length against the mechanical layout. The B coating is specified as average reflectance below 0.5% across the stated wavelength range.

Selection and integration

This version is best matched to red and near-infrared sources from 650 to 1100 nm, including many 780, 808, 850, 940 and 1064 nm systems.

Need a different diameter, tolerance or coating?

Custom substrate materials, dimensions, angular tolerances and coating bands can be reviewed for prototype and production quantities.

Request Engineering Review
