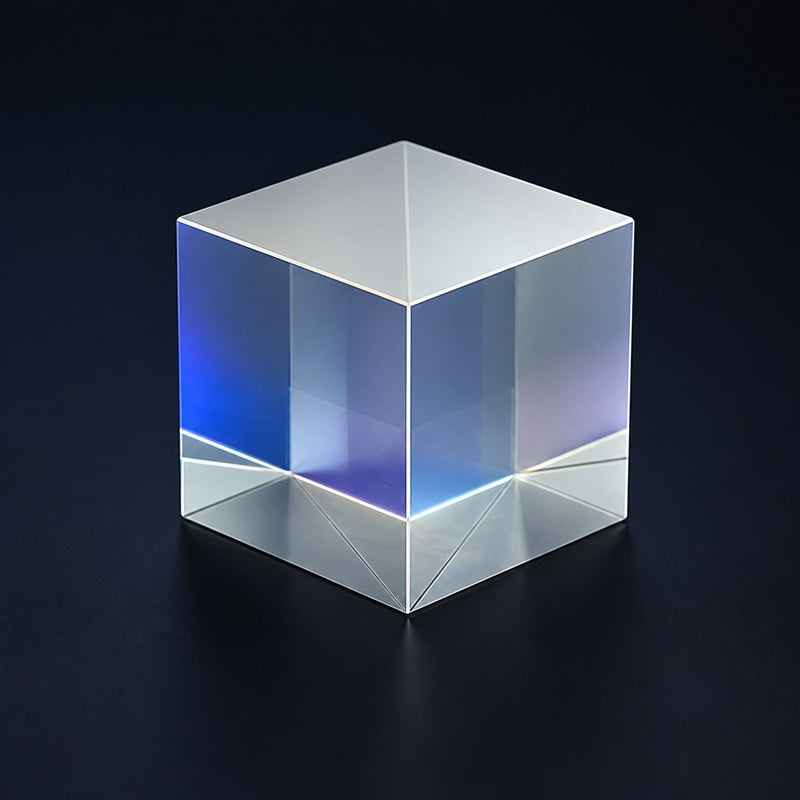

High-Power Polarizing Beamsplitter Cube front product view on a dark background

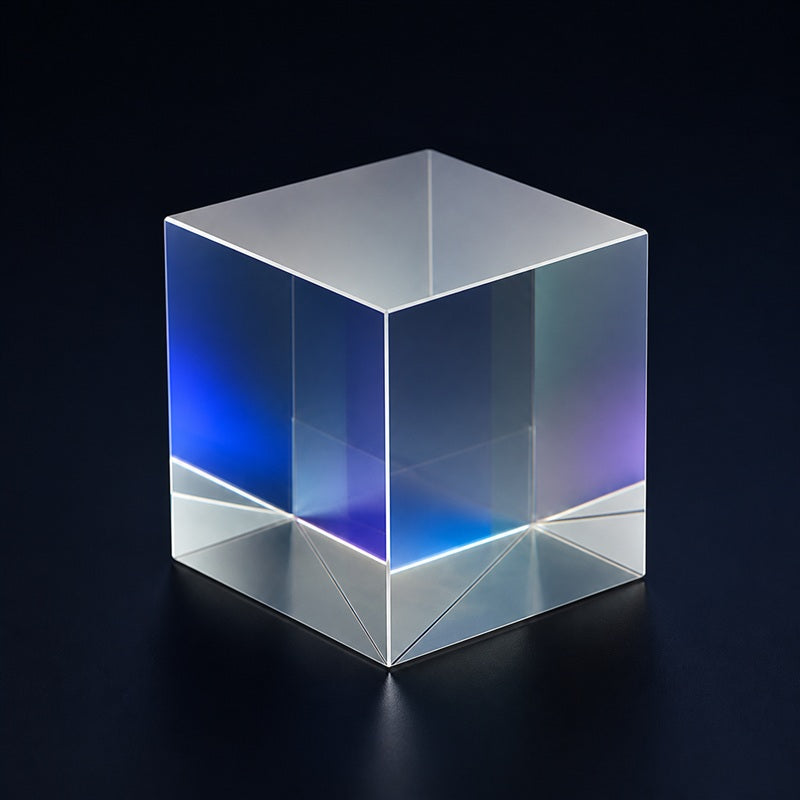

Angled view of High-Power Polarizing Beamsplitter Cube for beam splitting, interferometry and imaging systems

SO-BS04 SERIES

High-Power Polarizing Beamsplitter Cube

SO-BS04 High-Power Polarizing Beamsplitter Cube provides high-extinction polarization splitting for higher-power laser beams at selected wavelengths.

$852.94
$852.94

Select a Model

Product Overview

Balance wavelength, polarization and split ratio for High-Power Polarizing Beamsplitter Cube

The reflected/transmitted balance depends on wavelength, polarization and incidence angle. Use the exact listed coating and split-ratio variant for quantitative power division.

Check wavelength, extinction ratio, clear aperture and laser damage threshold together; keep the beam away from cement or edge regions.

Select a Model

models

Engineering Guidance

Choose the beam division method around the complete optical path

Power and polarization behavior

The reflected/transmitted balance depends on wavelength, polarization and incidence angle. Use the exact listed coating and split-ratio variant for quantitative power division.

Selection and alignment

Check wavelength, extinction ratio, clear aperture and laser damage threshold together; keep the beam away from cement or edge regions.

Need a different diameter, tolerance or coating?

Custom substrate materials, dimensions, angular tolerances and coating bands can be reviewed for prototype and production quantities.

Request Engineering Review
